$49.92

Brand: Banana PI
Product Code: bpi-m3
Availability: In Stock
Ex Tax: $49.92
2 or more $48.43
4 or more $46.19

Qty

Tags: banana, pi, bpi-m3, sbc, single, board, computer, bpi-m3, sbc, boards

Description
Reviews (0)

Banana Pi BPI-M3 Single Board Computer

Banana Pi M3 is a supercharged single-board computer with an Octa-core processor and 2GB of RAM. Alongside the elite processing unit, it features Gigabit Ethernet, 2 USB, SATA, WiFi, Bluetooth, and HDMI connection. It can run on a variety of operating systems including Android, Lubuntu, Ubuntu, Debian, and Raspbian.

Being a brother of the power-hungry M2, the M3 does not want to rest while his brother goes to acquire two more cores. The M3 secretly mastered the powerful art of Octa-core to best even the M2. Unlike his careless brother, the M3 did not lose his SATA port.

Banana Pi is an open platform device, it is for anyone who wants to play and build with developer technology instead of simply using consumer technology. Backed by our community, starting a project and building servers is fun and rewarding. We welcome all companies, DIYers, and tech-loving people within our community! Together, we can make a difference, we can discover our passions, inspire others, and build a practical project.

Key Features

Allwinner A83T Octa-core 1.8GHz Powerful CPU.

2 GB LPDDR3 memory.

8 GB eMMC storage.

HDMI out

IR control

WiFi & Bluetooth onboard.

MIPI DSI interface

CSI camera interface

Hardware Specs

Banana Pi BPI-M3

CPU Allwinner A83T ARM Cortex-A7 Octa-Core 1.8 GHz, 512KB L1 cache and 1MB L2 cache

GPU PowerVR SGX544MP1 Comply with OpenGL ES 2.0 OpenCL 1x, DX9_3

Memory 2 GB LPDDR3 (shared with GPU)

Storage On Board 8GB eMMC Flash, Micro SD-Card slot, SATA 2.0 Port (USB-to-SATA bridge)

Network 10/100/1000 Mbit/s Ethernet (Realtek RTL8211E/D) + Wi-Fi 802.11 b/g/n (AP6212) + Bluetooth BT4.0

Video Input(s) A CSI input connector allows for the connection of a designed camera module.

Video Output(s) HDMI 1.4 (Type A Full), MIPI Display Serial Interface (DSI) for raw LCD Panel

Audio Input(s) Onboard microphone

Audio Output(s) 3.5mm jack and HDMI

USB ports USB 2.0 PORT (x2), USB OTG (x1)

Remote IR Receiver (x1)

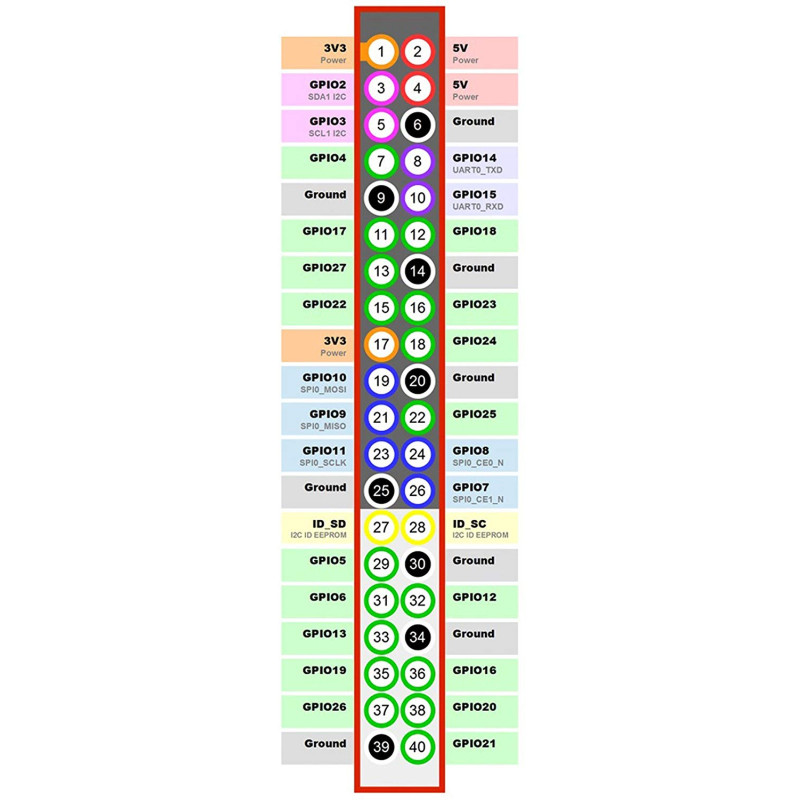

GPIO 40 Pin Header: GPIO (x28) and Power (+5V, +3.3V and GND). Some I/O Pin can be used for specific functions such as UART, I2C, SPI, or PWM

Switches Reset, Power and U-boot

LED Power Status and 8P8C

Power Source 5 volt @2A via DC Power and/or Micro USB (OTG)

Size & Weight 92x60mm, 48g

OS Android and Linux

System Image

Android

2018-06-05 update

HDMI-Version

Google Drive: https://drive.google.com/open?id=1mLXOAH_LPT-uqtwWvgvJXw4Vo95tFr_z

Baidu Cloud: https://pan.baidu.com/s/1byqwqzz9SOIWHYfOabXKNw

LCD-Version

Google Drive: https://drive.google.com/open?id=1DAxQIws0eAVPAm0riH5HXc8M36SH_-sC

Baidu Cloud https://pan.baidu.com/s/19l7a6Z75FuZb_f9Ls0fN5w

2017-05-11 update

HDMI-Version

Google Drive: https://drive.google.com/open?id=0B_YnvHgh2rwjcXkxczlmOWxWV00

Baidu Cloud: https://pan.baidu.com/s/1pKF3Ggj

MD5: d7b7abf3443a49fb0f178ccf2f6e82d0

LCD-Version

Google Drive: https://drive.google.com/open?id=0B_YnvHgh2rwjSkM5NHFWYVdlakk

Baidu Cloud : https://pan.baidu.com/s/1mi2YOeG

MD5: b27dd45ac5fd1fd3b02db8ffd92c2871

Forum thread: http://forum.banana-pi.org/t/bpi-m3-new-image-android-5-1-version-v5-2017-05-11/3241

Linux

Ubuntu

2021-08-03 release, Ubuntu Mate Desktop 16.04 with kernel 3.4.39

Download: 2021-08-03-ubuntu-16.04-mate-desktop-bpi-m3-sd-emmc.img.zip

MD5: 4cd6cfb9ed3a2d382dbc32bb478ac149

2021-08-03 release, Ubuntu Server 16.04 with kernel 3.4.39

Download: 2021-08-03-ubuntu-16.04-server-bpi-m3-sd-emmc.img.zip

MD5: ea5abe3fd6988931df85a2376808501a

2018-07-18 BPI-M3 Ubuntu 16.04 Mate Desktop (new eMMC)

Features Map: http://newwiki.banana-pi.org/en/BPI-M3/M3_Image_Map#_ubuntu_16_04

Google Drive: https://drive.google.com/open?id=1DlOrt08yUY9hAETiUXBiyoyPFHrOxtvq

Baidu Drive: https://pan.baidu.com/s/1ND5QqoBevzM2TykwqZCkAA

Forum thread: http://forum.banana-pi.org/t/bananapi-bpi-m3-new-image-new-emmc-ubuntu16-04-debian9-release-2018-07-18/6294

2018-07-18 M3 Ubuntu Server (new eMMC)

Features Map: http://newwiki.banana-pi.org/en/BPI-M3/M3_Image_Map#_ubuntu_lite

Google Drive: https://drive.google.com/open?id=1Yyd2BepHjyhgXhSmnFh_0Az6YoXPEI3J

Baidu Drive: https://pan.baidu.com/s/10vSo0AmIiMrVLNPkQ63leQ

Forum thread: http://forum.banana-pi.org/t/bananapi-bpi-m3-new-image-new-emmc-ubuntu16-04-debian9-release-2018-07-18/6294

2018-05-31 update ubuntu 16.04 mate desktop

HDMI version Baidu cloud: https://pan.baidu.com/s/1UDktbDgGtXpbqIZn_TI1Tg

2017-07-13 update ubuntu 16.04 mate desktop

HDMI version

Google Drive: https://drive.google.com/file/d/0B_YnvHgh2rwjRThoaHliWVVyZGM/view?usp=sharing

Baidu Cloud: http://pan.baidu.com/s/1nu6hJs9

Forum thread: http://forum.banana-pi.org/t/banana-pi-bpi-m3-new-image-ubuntu-16-04-mate-desktop-beta-bpi-m3-ov8865-sd-emmc-2017-07-13/3542

LCD 7 version

Google Drive: https://drive.google.com/file/d/0B_YnvHgh2rwjVldzUENFQXpiTHc/view?usp=sharing

Baidu Cloud: http://pan.baidu.com/s/1o8Uc4Y2
